Producing Intermediate Bulk Containers (IBC) demands a high level of automation and precision in blow molding production. Strict process control guarantees outstanding durability, chemical resistance and production efficiency.
This guide explains the full IBC manufacturing workflow step by step, including raw material selection, plastic extrusion, blow molding forming, cooling treatment, edge trimming, quality testing and final packaging.
1. Raw Material Selection
Premium IBC container quality relies entirely on proper raw material selection. Common raw materials include High-Density Polyethylene (HDPE) for high chemical resistance and mechanical strength. UV stabilizers protect IBC tanks from sunlight aging, while anti-static additives lower static risks for dangerous chemical storage. It is recommended to use virgin HDPE for long service life; recycled HDPE is ideal for cost-sensitive production.
2. Plastic Extrusion Process
The extrusion unit melts plastic materials and forms a hollow parison ready for blow molding. HDPE resin pellets are conveyed into the extruder, heated and melted at 180-240°C, then shaped into a cylindrical plastic tube. Multi-layer extrusion technology greatly enhances chemical barrier performance and overall structural toughness of finished IBC tanks.

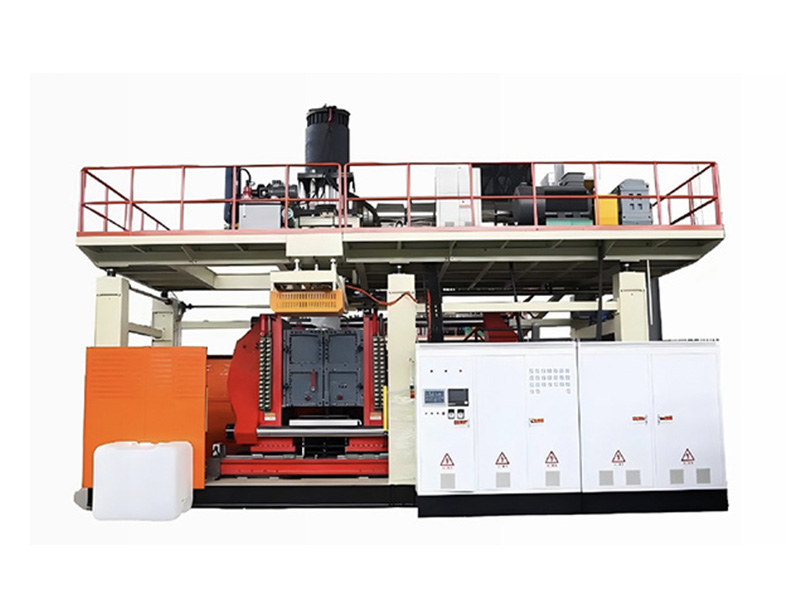

3. IBC Blow Molding Forming
Blow molding is the core procedure to shape the parison into standard IBC tank structure. The mold clamps tightly around the parison, then high-pressure air inflates the plastic to fit the mold cavity perfectly. Water-cooled molds ensure even wall thickness and stable mechanical strength. After sufficient cooling, the mold opens to release the semi-finished tank. Accurate air pressure and mold temperature control effectively avoid uneven wall thickness and other forming defects.
4. Cooling and Trimming Process
After blow molding, professional cooling and trimming are essential to maintain structural integrity. Water cooling shortens production cycle time, while air cooling prevents tank deformation through gradual temperature drop. The trimming stage removes extra plastic from mold joints and precisely trims tank neck and valve positions for perfect fitting of lids and valves. Automatic trimming equipment keeps consistent finished quality and lowers material waste.
5. Quality Inspection and Testing
Every IBC tank must pass strict quality checks before delivery to meet safety and industry standards. Major tests include leakage and pressure resistance test, drop impact test, stacking load-bearing test, as well as UV and chemical aging resistance test. Machines equipped with online inspection systems can effectively reduce defective products and improve overall qualification rate.
6. Assembly and Final Packaging
Qualified IBC tanks go through assembly, labeling and standardized packaging for delivery. Workers or automatic lines install valves, covers and metal supporting cages. Product specification labels and compliance marks are attached clearly. Finished IBC containers are stacked and wrapped tightly for safe transportation.
Automated assembly lines help manufacturers boost output and cut labor expenses.
Conclusion
IBC tank manufacturing is a highly automated and precision-controlled production process that ensures durability, safety and regulatory compliance. Every stage from raw material feeding to final packaging is optimized for higher efficiency and stable product quality.
