Investing in intermediate bulk container machinery is a critical manufacturing decision. Production throughput must balance against a strict zero-defect tolerance. Manufacturers face immense pressure daily. You simply cannot afford simple assembly errors. Inefficient assembly lines easily cause frustrating production bottlenecks. They slow down entire supply chains immediately. Inadequate testing often leads to catastrophic container failure in the field. These container failures disrupt global logistics. They cause major safety hazards in the chemical, oil, and gas sectors.
Your machinery purchasing strategy requires careful, proactive attention. We designed this comprehensive guide to provide a robust technical evaluation framework. It helps you assess assembly and detection equipment accurately. You will learn to look past flashy marketing claims. We help you focus on verifiable specifications and true implementation realities. This ensures you purchase machinery perfectly aligned to your specific facility needs.
Integrated Detection is Non-Negotiable: Standalone assembly without inline detection creates compliance risks; modern systems require continuous loop feedback.
Throughput vs. Flexibility: Standardizing on specific IBC dimensions (e.g., 275-gallon vs. 330-gallon) impacts machinery changeover times and overall equipment effectiveness (OEE).
Compliance Drives Specifications: Assembly precision directly impacts the final product's ability to pass UN and DOT certification for hazardous material transport.
Hidden TCO Factors: Equipment footprint, maintenance accessibility, and operator training requirements often outweigh initial procurement costs.
Historically, manufacturers separated physical assembly from quality control testing. Production teams welded the metal cage separately. They inserted the inner plastic bottle manually. Then, they moved the semi-finished unit to an isolated testing station. This siloed approach created numerous failure points across the factory floor. Defective units continued through multiple production stages unnecessarily. Operators wasted valuable time handling flawed containers. Scrap rates naturally increased. The extra manual handling damaged otherwise perfect containers.
Siloed testing creates hidden bottlenecks. An operator might move a welded cage manually. They might dent a structural bar accidentally. The isolated testing station catches the leak eventually. However, it cannot identify the exact handling phase that caused it. This lack of traceability frustrates engineers. Workflow synergy changes this dynamic entirely. A unified IBC Tank Detection And Assembly Line monitors every single step. It links welding parameters directly to the final leak test. This intelligent integration reduces manual handling immediately. Automated sensors prevent defective units from advancing to the next station. Immediate rejection minimizes scrap rates drastically. Your operators spend less time reworking flawed units. The machinery corrects minor discrepancies autonomously through continuous loop feedback.
We must define what a successful line actually looks like in practice. "Good" means comprehensive automated data logging for every single serial number. You need verifiable cycle times. They should consistently stay under 60 seconds per unit during continuous operation. Equipment must maintain yield rates reliably above 99 percent. Production managers rely heavily on these metrics. They guarantee consistent output during peak manufacturing seasons. Quality control teams rely on this traceable data continuously. It proves absolute compliance during strict regulatory audits.
Core assembly stages demand rigorous specification baselines. Each physical step deeply impacts the container's final structural integrity. You must evaluate every station independently.
First, consider galvanized frame manufacturing and welding. You must evaluate the primary drive mechanisms carefully before purchase. Look specifically for servo-driven automated bending systems. Prioritize robotic spot welding over older pneumatic systems. Servo motors ensure much higher structural consistency. They provide highly repeatable precision during continuous shifts. Pneumatic systems often fluctuate based on factory air pressure variations. Mid-shift pressure fluctuations cause weak bends. Weak bends lead to failed drop tests later. You must check specific engineering metrics here. Analyze weld strength tolerances closely. Measure the exact cycle synchronization between the bending and welding stations.
Next, evaluate the inner bottle handling and insertion process. High-density polyethylene (HDPE) blow-molded bottles are surprisingly delicate. Rough handling mechanisms easily cause microscopic abrasions. These tiny scratches weaken the bladder over time. They inevitably lead to dangerous leaks during transport. Evaluate the handling grippers thoroughly. Vacuum grippers provide excellent control. They distribute pressure evenly across the curved plastic surface. They prevent the localized stress caused by harsh mechanical clamps. Check the automated alignment precision closely. The machine must align the bottle perfectly for automated valve placement.
Finally, scrutinize pallet assembly and final fastening protocols. Operators attach the heavy galvanized cage to a base pallet. Standard pallets consist of wood, steel, or composite plastics. Evaluation requires looking closely at the fastening tools. Demand strict torque-controlled automated fastening systems. Precise torque control prevents dangerous over-tightening. It entirely eliminates stripped metal threads. Modern equipment uses recipe-driven torque profiles. The operator selects the pallet type on the control screen. The machine adjusts the fastening force automatically. This keeps the cage securely mounted during exceptionally rough transit conditions.
Quality assurance relies completely on precise detection modules. Standard assembly is useless without inline testing. Inline leak testing uses advanced pressure decay methods. The machine injects dry air into the bladder. It monitors the internal pressure closely. The test begins with air stabilization. The machine fills the bladder to a set pressure limit. It waits for the air temperature to stabilize. Compressed air heats up during injection. Cooling air reduces internal pressure naturally. The system must account for this thermodynamic shift. Only then does the actual decay measurement start. This sequence prevents false failure readings.
A microscopic pressure drop indicates a hidden micro-leak. These leaks often hide deep in the bladder seams or valve seals. You must strictly validate the testing machine's sensitivity parameters. Compare them against the specific viscosity of your intended cargo. Industrial paints behave very differently than highly volatile fine chemicals. Fine chemicals demand much higher testing sensitivity.
Structural and visual inspection is equally important for overall safety. Modern assembly lines integrate sophisticated machine vision cameras. High-resolution cameras capture dozens of images per second. They use contrasting lighting. This highlights minute cracks in the weld seams. They compare the real-time image to a perfect CAD model. The software flags any deviation instantly. They also confirm correct label plate positioning automatically. Misaligned plates cause massive compliance headaches later during international shipping.
Valve and cap integrity checking ensures absolute transport safety. The top cap secures the entire fluid load during transport rollovers. Automated pneumatic tools verify the rotational torque on discharge valves. They check the top fill caps simultaneously. These essential components must meet strict UN and DOT transport regulations. Inspectors check these components rigorously.
Inspection Module | Testing Method | Primary Target Area | Key Performance Metric |
|---|---|---|---|
Inline Leak Testing | Pressure Decay | HDPE Bladder & Seals | Pascal drop sensitivity |
Structural Verification | Machine Vision | Tubular Grid & Welds | Millimeter alignment tolerance |
Component Integrity | Automated Torque Check | Discharge Valves & Caps | Newton-meter (Nm) accuracy |
Global market demands change rapidly. Your manufacturing equipment must adapt efficiently. Handling multiple dimensions is a highly critical capability. Assess the production line's ability to switch formats seamlessly. It should handle standard 1000L (275-gallon) formats easily. It must also accommodate larger 1250L (330-gallon) IBC formats without hassle. Changing dimensions requires moving heavy welding jigs. It requires adjusting the bottle insertion heights. It involves resetting the leak test stabilization volumes.
Older machines require heavy wrenches and manual measurements. Modern lines use automated positioning systems. Operators simply load a new recipe on the screen. The machine moves the jigs via motorized ball screws. Ask your vendors for realistic tooling changeover times. Request documented video proof. If retooling takes a full shift, equipment flexibility becomes commercially useless. Fast changeovers turn a four-hour mechanical task into a ten-minute digital adjustment. You save hours of lost production time continuously.

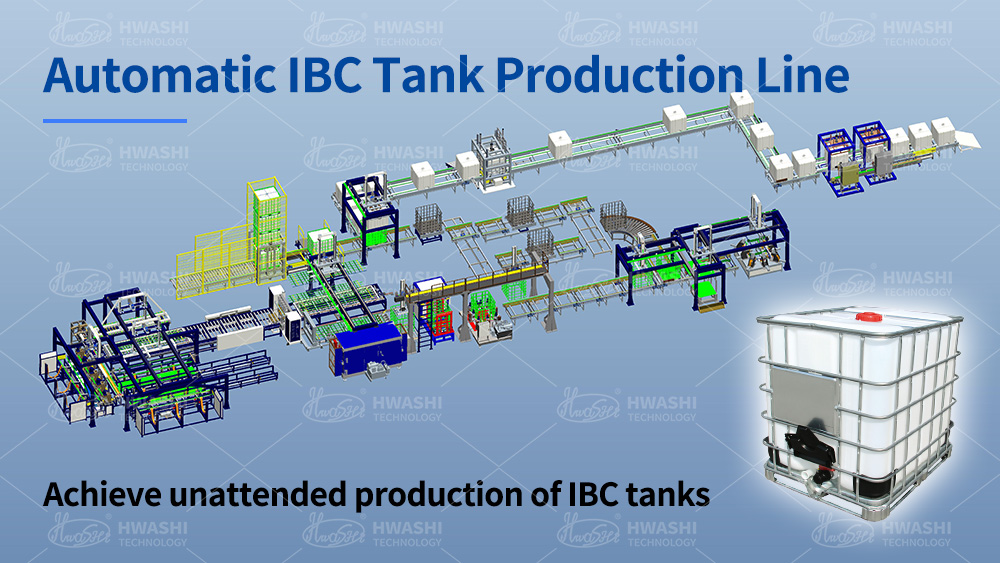

Footprint and layout constraints heavily influence facility planning. You must choose carefully between linear and U-shape configurations. Linear setups often require massive continuous floor space. They require long conveyor belts. They increase the risk of transit damage between stations. U-shape configurations optimize operator walking distances intelligently. They fit much better in standard square facilities. Evaluate how the new line integrates into your existing workflow. It must connect smoothly to existing upstream blow-molding machines. It should feed directly into downstream automated warehousing solutions. Sometimes, standard factory layouts fail to meet specific spatial needs. In these complex cases, leveraging specialized customization services ensures the equipment fits your exact floor plan perfectly.
Heavy machinery procurement involves significant implementation risks. You must navigate them carefully. The Factory Acceptance Testing (FAT) is your first solid defense. Buyers must mandate strict FAT conditions. Material variations destroy production efficiency. Steel tubing from different regions behaves differently. It has varying carbon content. It bends differently. If you test with generic steel but manufacture with specific localized steel, the machine will fail on site. Bring your actual supply chain materials to the FAT. Supply your actual tube steel gauge. Bring your specific factory-produced HDPE bottles. Run the machine for hours continuously. Look for heat buildup in the welding transformers.
The Site Acceptance Testing (SAT) and final rollout present entirely different challenges. The primary risk shifts to local systems integration. You must integrate the new machinery into local factory software architectures. Software integration is notoriously difficult. The assembly line must talk to your factory servers. It must request serial numbers. It must report completed units automatically. Handshake errors between the machine controller and the factory server cause massive delays. Local electrical standards must match perfectly. Strong vendor support during this vulnerable phase is absolutely vital. Reliable after-sales service ensures sudden software glitches do not halt your production line.
Apply strict logical frameworks when shortlisting equipment vendors. Filter out manufacturers quoting purely theoretical maximum speeds. Theoretical speeds completely ignore realistic detection delays. Demand sustained, detection-inclusive operational speeds instead. Prioritize vendors offering highly verifiable case studies. Look for proven success in extremely demanding vertical markets. Oil, gas, and hazardous chemical sectors require rigorous compliance standards. A vendor succeeding there will likely meet your strict needs. To understand a supplier’s true manufacturing capability in these rigorous markets, reviewing their detailed about us documentation often reveals their historical expertise and deep engineering background.
A robust intermediate bulk container assembly line specification requires strict strategic priorities. You must prioritize seamless detection integration over raw speed. Provable changeover efficiency matters significantly more than theoretical maximums. True zero-defect tolerance defines long-term operational success. Next steps require immediate internal auditing. Outline your current production defect rates clearly. Document your specific physical dimensional requirements. Map out your exact available facility footprint. Gather all these complex details before requesting technical audits from equipment manufacturers. This thorough preparation ensures you receive highly accurate equipment proposals. You will confidently select modern machinery built specifically for heavy-duty industrial demands.
A: A properly synchronized line typically produces one completed, tested unit every 45 to 60 seconds, though this fluctuates based on the depth of the inline leak detection protocols.
A: Yes, high-tier specifications include modular fastening stations that can be adjusted via HMI (Human-Machine Interface) recipes to accommodate varying base materials, provided the overall IBC footprint remains standard.
A: Industrial-grade pressure decay systems can typically detect leaks as small as a few pascals of pressure drop within a 10-15 second testing window, satisfying requirements for highly volatile chemical storage.
A: Welding electrode wear and the calibration of the pressure testing seals are the most frequent maintenance requirements. Buyers should specify easily accessible wear parts in their initial procurement RFQ.
