Top 7 Specialized Machines for Full 1000L IBC Tank And Cage Production

Full technical breakdown of seven core IBC production machines including blow molding specs, PLC cage welding, servo bending, hydraulic punching, pallet welding and automated assembly system features.

1000L Intermediate Bulk Containers (IBCs) rely on coordinated multi-process manufacturing combining plastic blow molding and metal steel fabrication. Every finished IBC requires seven specialized industrial machines with precise mechanical, servo and hydraulic specifications to manufacture the HDPE inner tank, reinforced steel safety cage and supporting metal pallet. For technical procurement managers and factory equipment spec reviewers, this guide covers full functional parameters, key technical features and optional upgrade modules for each essential IBC production machine.

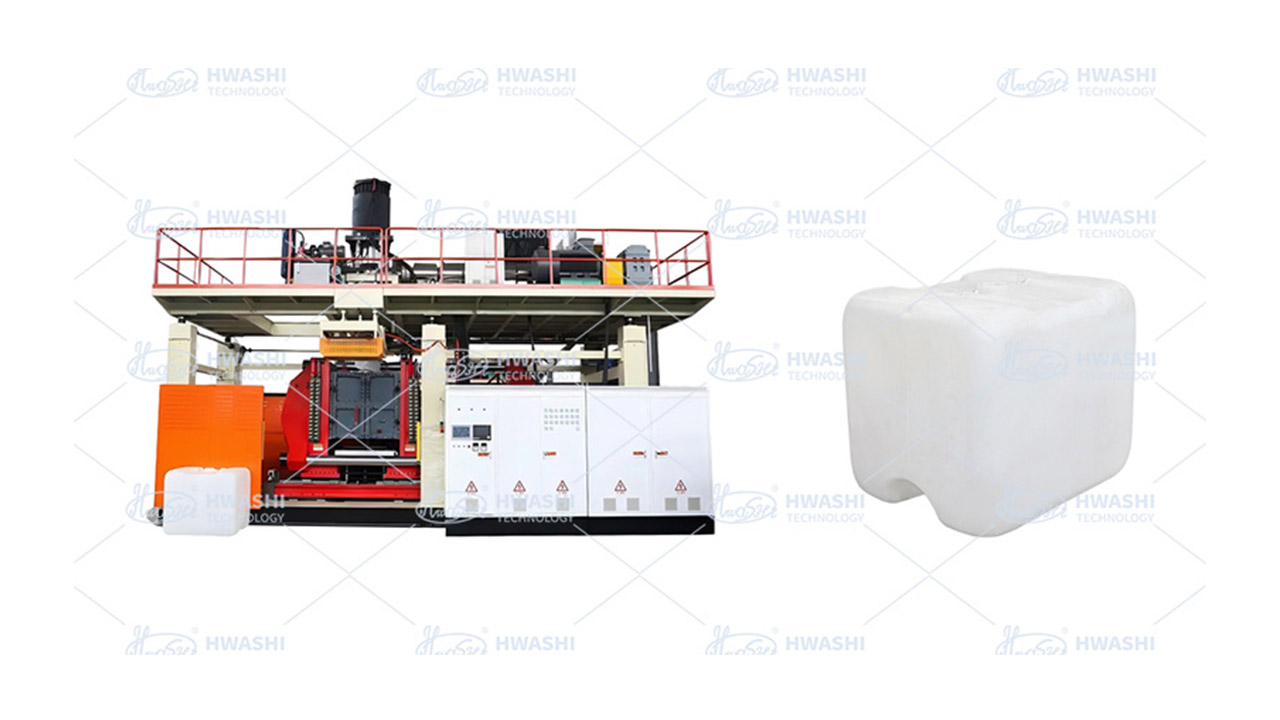

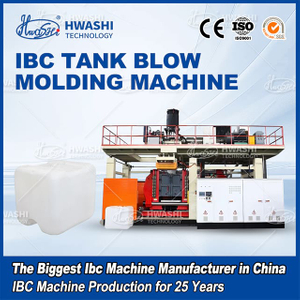

1. IBC Tank Blow Molding Machine – Plastic Liner Forming Unit

Core Function: High-pressure extrusion blow molding of 1000L HDPE inner IBC tanks

Key Technical Features:

• Uniform infrared heating system for consistent plastic melt distribution

• Optional multi-layer co-extrusion for UN-certified hazardous liquid containers

• Standard throughput: 20–30 tanks per hour on high-output models

• Optional add-on modules: automatic deflashing, inline leakage testing, visual camera inspection

  Supply Advantage: HWASHI collaborates with leading domestic blow molding manufacturers to deliver complete CE-certified tank forming lines with full parameter customization.

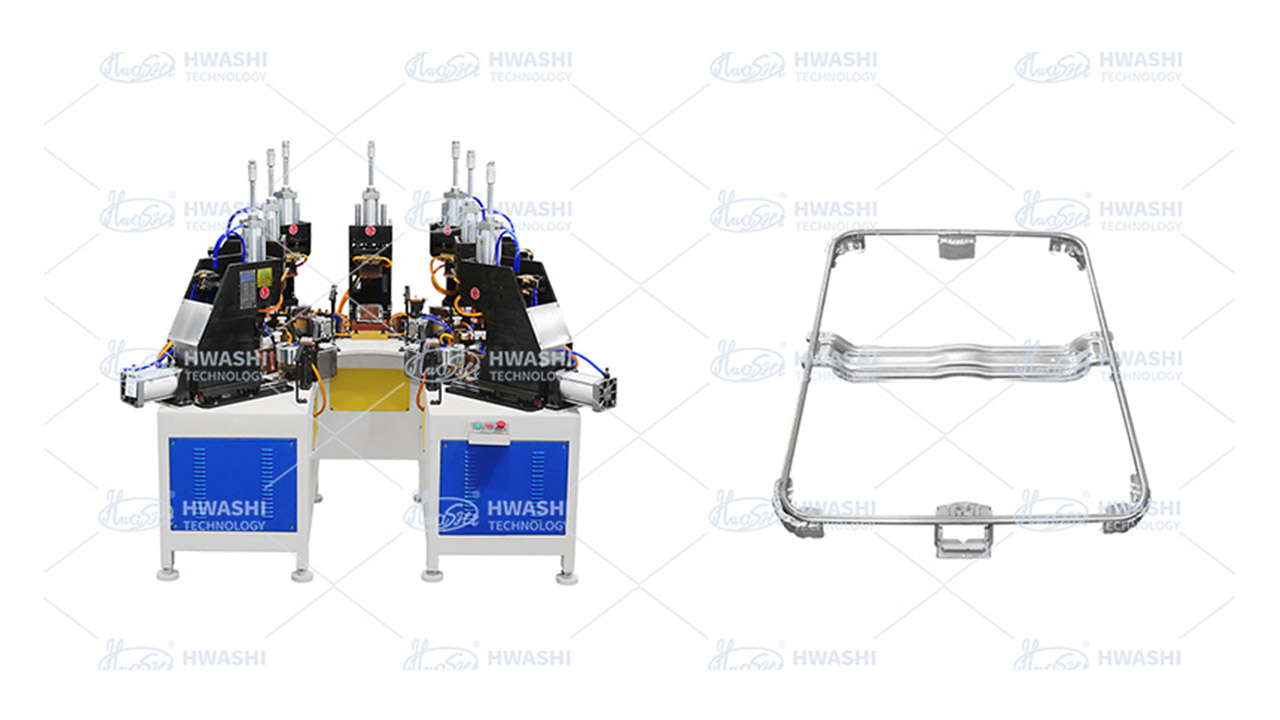

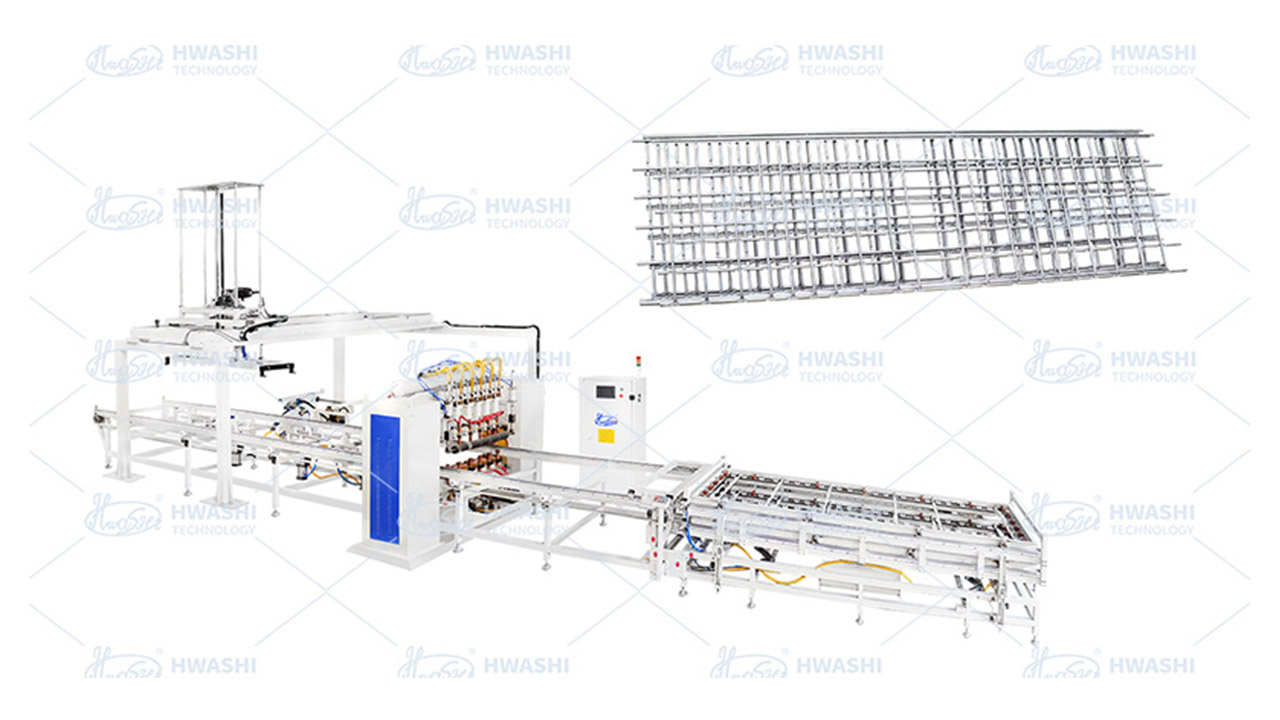

2. IBC Cage Mesh Welding Machine – Steel Frame Fabrication

Core Function: Automated welding of horizontal/vertical steel tubes into protective IBC cage mesh

Key Technical Features:

• PLC programmable resistance spot welding control system

• Customizable mesh dimension support: 100×100mm, 100×200mm and custom sizes

• Storage capacity for up to 20 independent cage production parameter sets

• Servo-driven tube pulling system for sub-millimeter dimensional consistency

3. Automated IBC Steel Tube Feeding System – Welding Station Auxiliary Equipment

Core Function: Uninterrupted automatic raw steel pipe feeding to mesh welding machine

Key Technical Features:

• Compatible pipe diameter range: Ø16mm to Ø21mm standard IBC frame tubing

• Fully automatic configuration cuts manual labor input by over 60%

• Integrated position calibration and material presence detection sensors to eliminate production errors

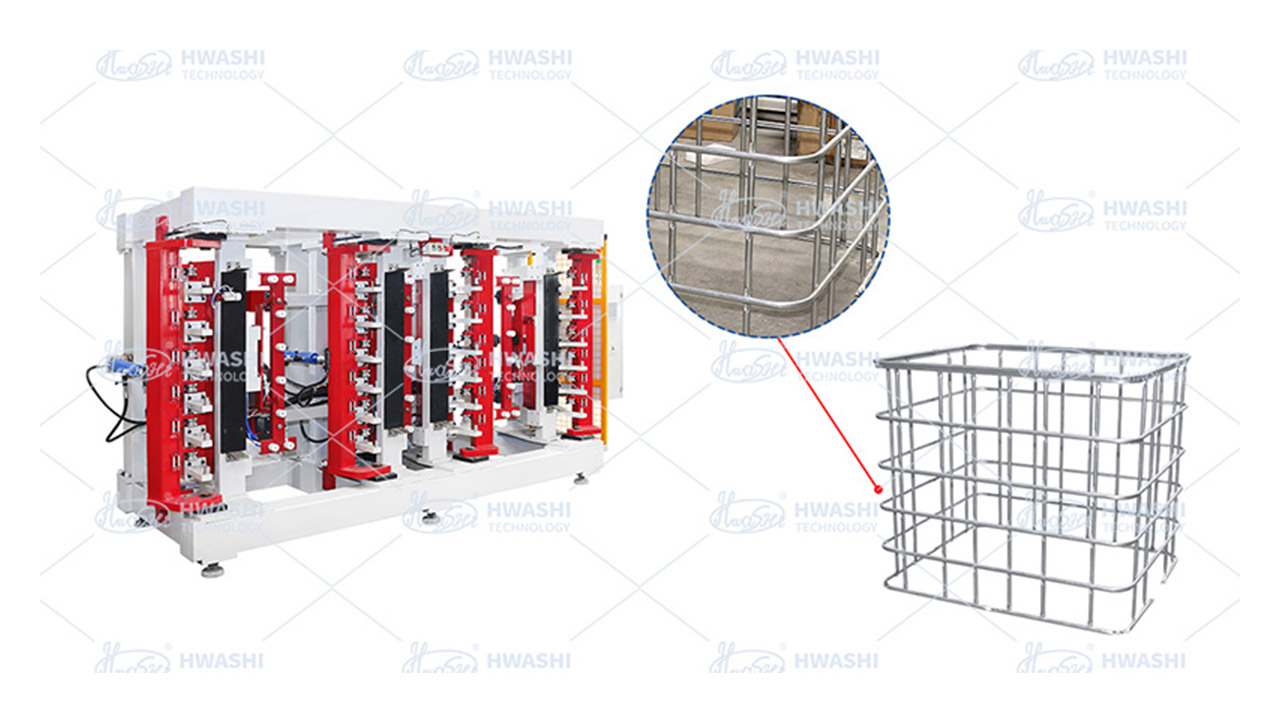

4. Servo & Hydraulic IBC Cage Bending Machine – Mesh Forming Equipment

Core Function: 3D bending of pre-welded flat mesh into finished rectangular IBC cage frames

Key Technical Features:

• Dual power options: full servo drive or hydraulic bending systems

• Rapid quick-change mold mechanism for multi-spec cage production

• Precision bending tolerance controlled within ±0.1mm for consistent assembly fit

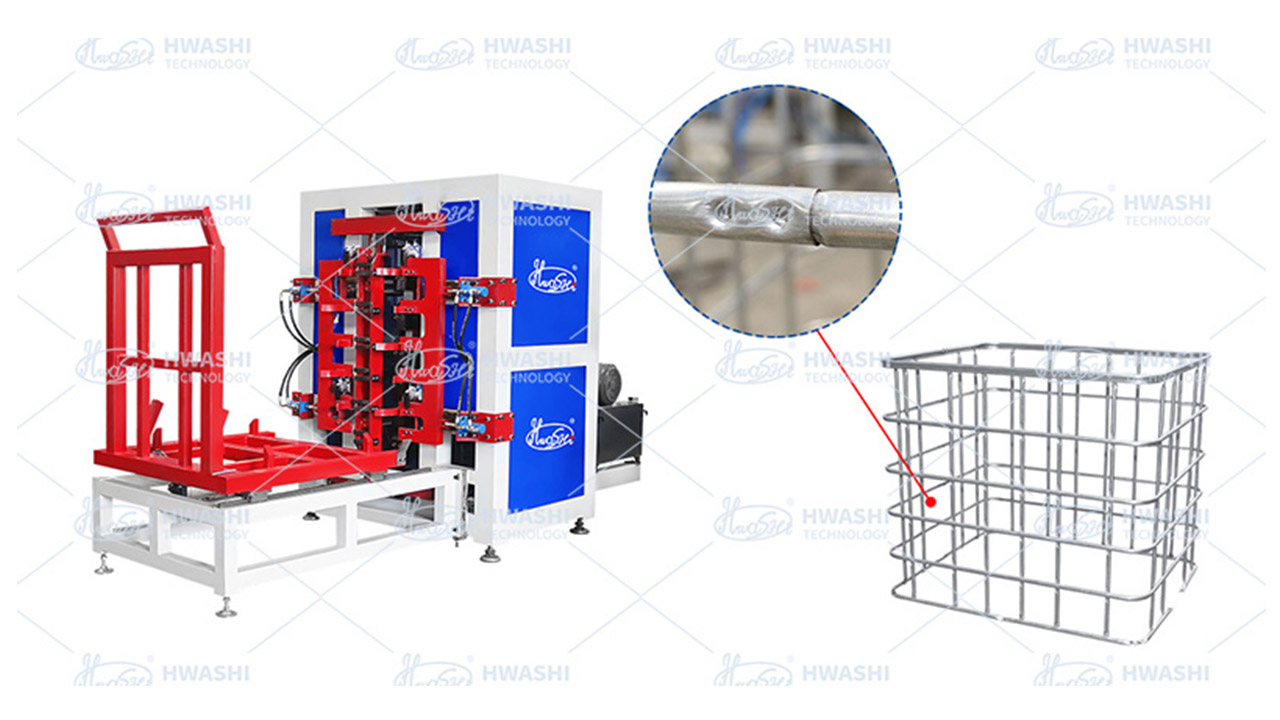

5. IBC Lock Clinching & Hydraulic Punching Machine – Frame Finishing Equipment

Core Function: Mechanical cage frame locking + precision hydraulic hole punching

Key Technical Features:

• Clinching joint technology for rigid interlocking cage frame construction

• Hydraulic punching for valve openings, nameplate slots and mounting cutouts

• Universal compatibility with side lock, bottom lock and corner lock IBC cage frame systems

6. IBC Steel Pallet Welding Machine – Load-Bearing Base Production

Core Function: Heavy-duty welding of IBC support steel pallets

Key Technical Features:

• Supports flat base pallets and four-way forklift entry structural designs

• Reinforced heavy-duty frame with high tensile strength welded joints

• Optional automatic pallet stacking attachment for post-welding material handling

  Material Compatibility: HWASHI pallet welding stations support galvanized and powder-coated steel tubing raw materials.

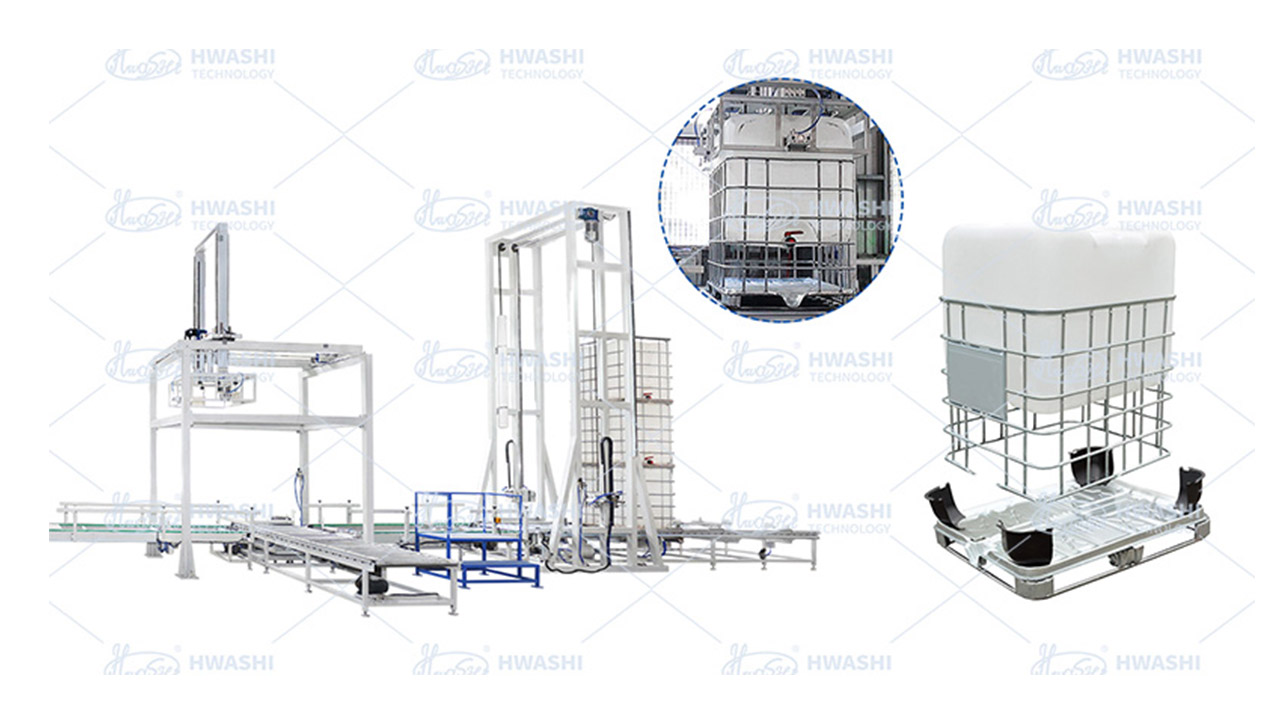

7. Automated IBC Assembly & Robotic Palletizing System – End-of-Line Finishing Station

Core Function: Complete integration of HDPE tank, steel cage, lid and outlet valve into finished IBC units

Key Technical Features:

• Automatic tank insertion and precision alignment mechanism

• Optional ultrasonic valve welding unit + automated lid tightening module

• Dual palletizing solutions: conveyor transport or industrial robotic arm handling

  Customization: HWASHI provides fully automatic and semi-automatic assembly configurations adjusted to client production budgets.

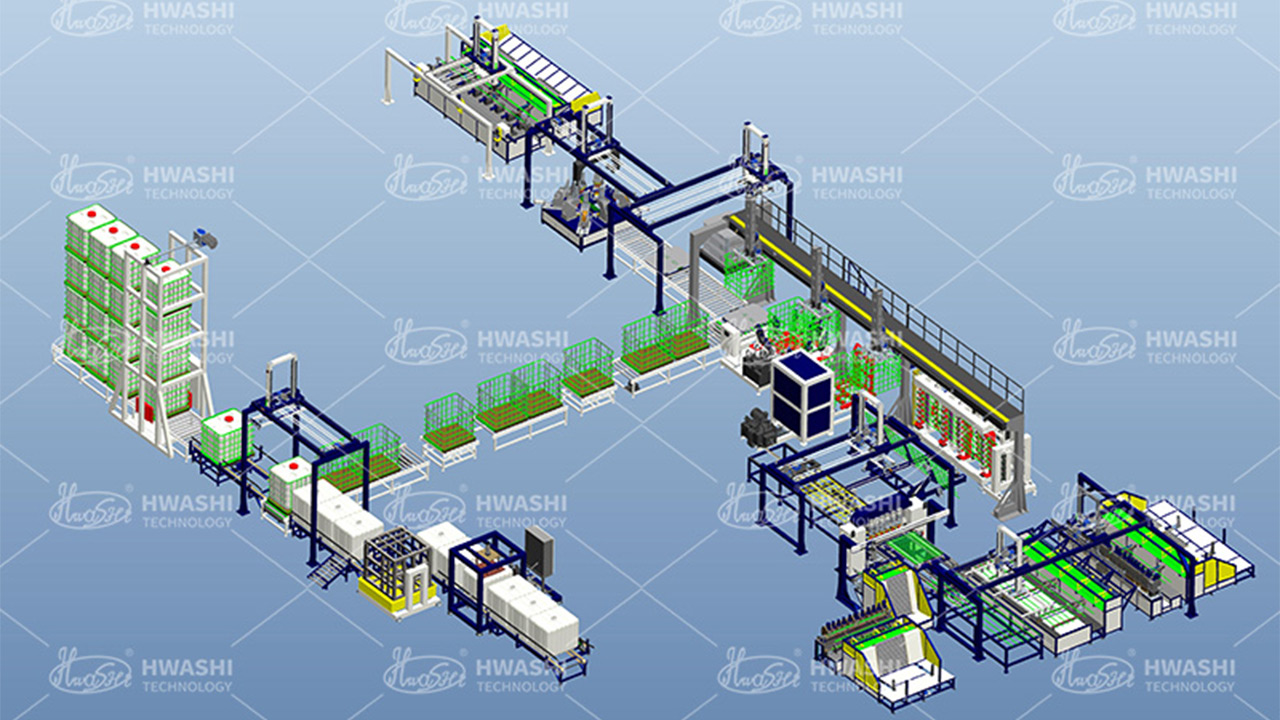

Integrated Full IBC Production Line Technical Advantages

1. Labor efficiency improvement: up to 70% labor cost reduction vs discrete manual equipment

2. Combined system hourly throughput: 40–60 complete finished IBC sets

3. Full digital parameter logging enables end-to-end product quality traceability

4. CE-certified machine systems meet global export packaging compliance standards

HWASHI TECHNOLOGY – Professional Technical Supplier of IBC Automatic Production Equipment

With 25 years of dedicated R&D and manufacturing experience focused on IBC metal cage frames and complete automated production lines, we deliver reliable equipment solutions to industrial packaging manufacturers in over 80 global markets. Our full-cycle one-stop service covers customized plant layout design, full CE standard certification, 24/7 remote online technical support, and integrated complete machine sets that fulfill all seven key IBC production processes.

Request Custom Equipment Specs & Plant Layout

Our engineering team tailors production line configurations according to your product technical requirements (UN hazard certification, food-grade liner specs, reusable industrial IBC design), target hourly output volume and factory space dimensions. Contact us now to receive free technical specification consultation and customized 3D factory layout engineering drawings.
