Investing in an IBC Cage Production Line represents a high-stakes capital expenditure for packaging manufacturers. You must maximize Overall Equipment Effectiveness (OEE) while maintaining strict final-product compliance. Hazardous liquid transport requires Intermediate Bulk Containers (IBCs) to meet rigorous UN safety standards. Your equipment choices directly impact these certifications.
Buyers often face significant risks during the specification phase. Under-specifying your machinery causes immediate bottlenecks, high defect rates, and weak welds. You will lose money on rework and scrap. Conversely, over-specifying leads to bloated capital expenditure. You end up paying for unutilized capacity and complex features you do not need.
This guide provides a clear, engineering-focused framework to help you evaluate and procure the ideal manufacturing setup. You will learn how to shortlist the right machinery for galvanized steel IBC cages. We base these recommendations on precise production volumes and realistic facility capabilities.
Production Volume Dictates Automation: Align machine categories (semi-auto vs. fully automated) directly with your target cycle times (e.g., cages produced per shift).
Welding Quality equals Compliance: Medium-frequency welding technology is non-negotiable for producing cages that pass strict drop and vibration tests required for hazardous liquid storage.
Rigorous Testing is Essential: Never bypass structured Factory Acceptance Testing (FAT) and Site Acceptance Testing (SAT) when validating vendor claims.
You must establish strict baseline metrics before evaluating any machinery. Output capacity defines the entire architecture of your manufacturing floor. Differentiate between requirements for 30-40 cages per hour versus 60+ cages per hour. A lower volume target allows for manual transfer stations. Higher volume demands continuous, synchronized automation. Calculate your required output per shift. Include a 15% buffer for planned maintenance and unexpected downtime.
Machinery must accommodate your specific container dimensions. Standard sizes include the 275-gallon (1000L) and 330-gallon (1250L) variants. Your equipment must switch between these profiles seamlessly. Evaluate the wire gauge handling capabilities. Different markets demand different galvanized tube profiles. Ensure your chosen machinery supports the exact steel yield strength and coating thickness you plan to run. Inflexible machines cause costly production delays.
Best Practice: Standardize your raw material inputs early. Variations in galvanized wire temper will disrupt automated feeding mechanisms.
Production line precision directly impacts final certification. The IBC tote must meet UN and DOT regulations for safe liquid storage. Transporters drop, vibrate, and stack these containers under heavy loads. Weak mesh welds will fracture. Inaccurate corner bending compromises structural integrity. Your manufacturing equipment must guarantee absolute repeatability. Consistent weld penetration ensures the cage absorbs kinetic energy during mandatory drop tests.
Assess your regional labor costs. This calculation determines the viable payback period for high-automation lines versus manual-assist lines. In regions with expensive labor, fully automated systems provide rapid ROI. They reduce headcount and eliminate operator fatigue. In markets where labor is accessible and affordable, semi-automatic lines offer a lower barrier to entry. Always factor in the cost of hiring specialized technicians to maintain advanced robotics.
Production Capacity Matching Matrix
Machine Category | Target Output (Cages/Hour) | Ideal Manufacturer Profile | Operator Requirement |
|---|---|---|---|
Semi-Automatic | 30 - 40 | Regional suppliers, low-volume targets | 3 - 5 manual operators |
Fully Automatic | 60 - 90+ | Enterprise packaging suppliers | 1 - 2 supervisory operators |
Modular / Phased | 40 - 60 | Growing manufacturers scaling up | 2 - 3 operators |
These setups work best for regional manufacturers. They suit facilities managing lower volume targets and constrained capital budgets. Semi-automatic lines rely on accessible labor pools. Features typically include manual frame loading and automated mesh welding. Operators manually transfer welded meshes to bending and assembly stations.
The limitations are clear. Cycle times remain inconsistent due to operator fatigue. Manual lifting increases the risk of handling damage. Weld quality stays high, but throughput fluctuates throughout a single shift.
Common Mistake: Underestimating the physical strain on operators. Lifting heavy steel meshes manually requires robust ergonomic support.
Enterprise packaging suppliers require fully automated solutions. These systems handle high-volume demands effortlessly. Features include automated wire feeding and continuous mesh welding. Robotic arms handle transfer operations. The line automatically manages bending, locking, and base pallet integration. Human intervention is minimal.
However, you face strict limitations. These lines demand significant floor space. The initial capital expenditure is much higher. You also need highly skilled maintenance technicians. A minor sensor fault can halt the entire production process.
Growing manufacturers often choose modular systems. They provide immediate capacity alongside a clear roadmap for scaling. You start with semi-automatic core modules. You then retrofit robotic transfers or automated base assembly units later.
Evaluate the integration risks carefully. Adding robots to an existing line requires substantial downtime. Software handshakes between old and new PLCs often cause delays. Consult an expert to review your layout. You can explore flexible layout designs through specialized customization services to ensure your factory floor is future-proof.
Assess Medium-Frequency Inverter (MFI) versus standard AC welding. MFI technology is vastly superior. It operates at 1000 Hz compared to the standard 50/60 Hz. This reduces molten spatter and saves significant energy. MFI ensures deeper, more uniform penetration on galvanized steel. It prevents the zinc coating from severely degrading the weld nugget.
Check the machinery for automated mesh fault detection. Ask vendors about automatic electrode adjustment. As electrodes wear down, the PLC should adapt the current to maintain weld strength. This prevents weak joints from passing down the line.

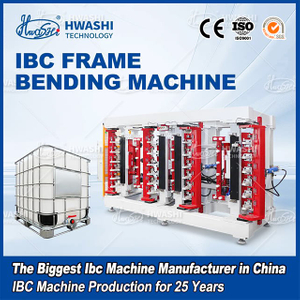

Evaluate the corner-bending units. Decide between mechanical and hydraulic systems. Precision during the bending phase prevents catastrophic cage failure under dynamic loads. If the bend radius is too sharp, the steel wire fractures. If it is too loose, the IBC tote shifts inside the cage.

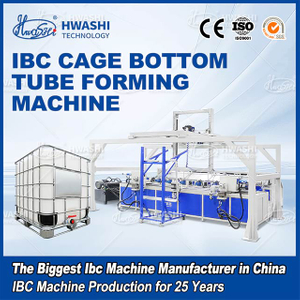

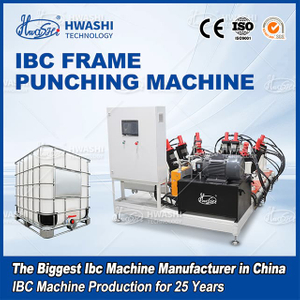

Review the pipe flattening mechanisms. Examine the hole-punching stations. Misaligned punches compromise the structural integrity of the base pallet assembly. Precision tooling is essential here.
Measure the exact downtime required to switch production dimensions. Moving from a 275-gallon profile to a 330-gallon profile can take hours on poorly designed machines. Apply Single-Minute Exchange of Die (SMED) principles.
Look for quick-release tooling. Ensure the system uses recipe-driven PLC controls. An operator should simply select a new recipe on the HMI screen. The machine should automatically adjust servos and welding parameters.
Verify the origin and brand of critical internal components. Continuous operation destroys cheap parts. Inspect the servo motors, PLCs, and pneumatic cylinders. Rely on globally recognized brands for these elements. Proprietary, unbranded electronics will fail. When they do, you cannot source replacements quickly.
Analyze your available floor space accurately. Continuous inline layouts require a long, narrow footprint. U-shape or modular configurations save length but require more width. You must factor in staging areas. Raw galvanized wire spools and tube bundles consume massive space. Finished cages also require immediate offloading areas to prevent bottlenecks.
Best Practice: Tape out the exact dimensions of the proposed machinery on your factory floor. Include a 2-meter perimeter for safe maintenance access.
Map out heavy-duty infrastructure needs early. Industrial welding machines draw massive electrical currents. You will likely need dedicated high-voltage transformers. Map out the specific electrical load requirements for your entire line.
Cooling water systems are mandatory. MFI welders generate intense heat. A closed-loop industrial chiller ensures your electrodes do not melt. You also need high-capacity industrial compressed air. Pneumatic clamps require consistent pressure (usually 0.6 to 0.8 MPa) to hold steel tubes rigidly during welding.
Set realistic expectations for shipment, installation, and calibration. Standard projects take months. Detail the necessity of a stringent Factory Acceptance Test (FAT). Before the machinery leaves the vendor's floor, run a live test.
Here is your essential FAT checklist:
Ship your exact raw materials (wire and tubes) to the vendor facility.
Run a continuous 4-hour production cycle.
Measure cycle times against the agreed contract.
Perform destructive testing on the welded mesh.
Verify corner bending radii against UN drop-test specifications.
Never sign off on shipment until the FAT is flawless.
Budget time and resources for vendor-led training. Your maintenance crew needs specialized upskilling. They must learn PLC troubleshooting. They must master electrode dressing and replacement. Preventative servicing keeps OEE high. Ignoring daily maintenance schedules guarantees machine breakdown.
Familiarize yourself with the vendor's team. You can learn more about us to understand how dedicated engineering teams support your upskilling initiatives post-installation.
Demand detailed case studies. Request site visits to operational lines producing similar cage volumes. Seeing a machine run in a vendor showroom is helpful. Seeing it run in a dusty, high-tempo factory environment reveals its true reliability. Speak to the floor operators at these reference sites. Ask them about common jams and downtime events.
Evaluate the vendor's domestic spare parts inventory. A two-week wait for a proprietary servo motor halts your entire plant. This downtime destroys profit margins. You need guarantees on part availability.
Review remote diagnostic capabilities. Modern machines feature IoT-enabled PLCs. Vendor engineers can log in remotely to troubleshoot software faults instantly. Ensure you are backed by robust after-sales service programs to mitigate long-term operational risks.
Create a shortlist matrix to compare vendors objectively. Look beyond the initial sticker price. Evaluate estimated energy consumption per cage. Calculate the exact labor headcount required. Estimate expected scrap rates during changeovers. Factor in annual preventative maintenance costs. A cheaper machine often consumes more electricity and requires more operators, eliminating any upfront savings.
Draft a highly specific Request for Quotation (RFQ). Filter out unqualified vendors immediately. Detail your exact cycle time demands. Include your wire gauge specifications and galvanized coating thicknesses. Mandate the FAT requirements in the initial document. Vendors who hesitate to accept your FAT terms cannot deliver the precision you need.
Purchasing an IBC cage production line is fundamentally an exercise in risk mitigation. You must map your efficiency goals against reality. Aligning machine capabilities with your exact production volume prevents both bottlenecks and wasted capital.
Remember that machinery specifications must perfectly match final compliance requirements. UN and DOT certifications depend entirely on your weld penetration and bending accuracy. Medium-frequency welding and precise mechanical controls are non-negotiable for hazardous liquid storage safety.
Before initiating vendor RFQs, audit your current facility infrastructure. Check your electrical transformers, cooling capacities, and floor space. Define your exact cycle-time requirements. This preparation guarantees you procure a system that enhances profitability from day one.
A: Standard lead times typically range from 4 to 8 months. Designing custom layouts, manufacturing the heavy-duty framing, and programming PLCs require significant time. Extensive customization or specialized modular integrations will push timelines toward the 8-month mark. Always factor in an additional 3-4 weeks for shipping, site installation, and SAT calibration.
A: Yes. High-quality lines handle both 275-gallon and 330-gallon sizes. This requires quick-release tooling and recipe-driven PLC adjustments. Operators select the new profile on the screen, and the machine adjusts parameters. However, heavy variances outside standard profiles may require distinct modular add-ons or dedicated machinery.
A: A fully automated line shifts the labor focus from manual lifting to supervisory control. You typically need 1 to 2 operators per shift. They monitor raw material feeds, oversee quality control, and manage PLC alerts. You also require access to a dedicated maintenance technician for rapid troubleshooting.
A: The most frequent issues include welding electrode wear and pneumatic seal degradation. Galvanized steel leaves zinc buildup on electrodes, requiring regular dressing or replacement. Pneumatic cylinders experience seal wear from continuous high-speed cycling. Sticking to a rigid, daily preventative maintenance schedule prevents these minor wear parts from causing major production stops.
