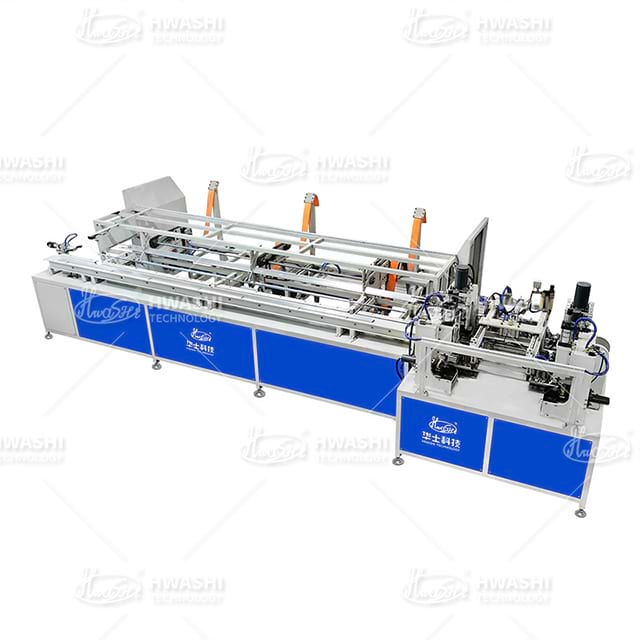

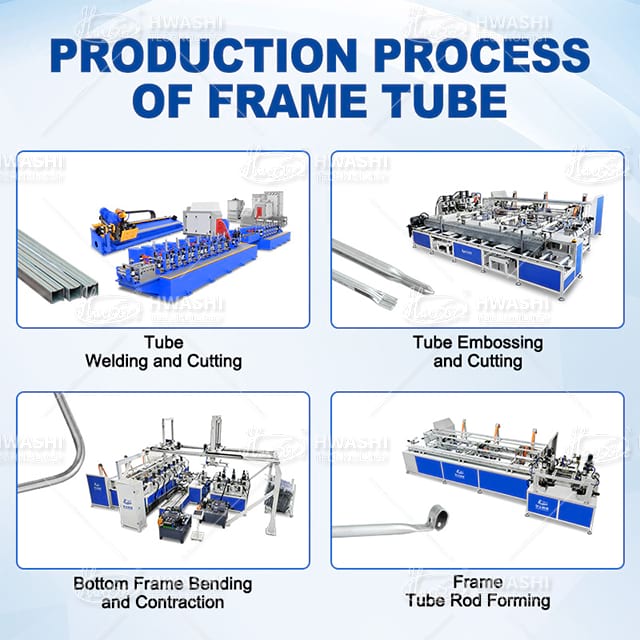

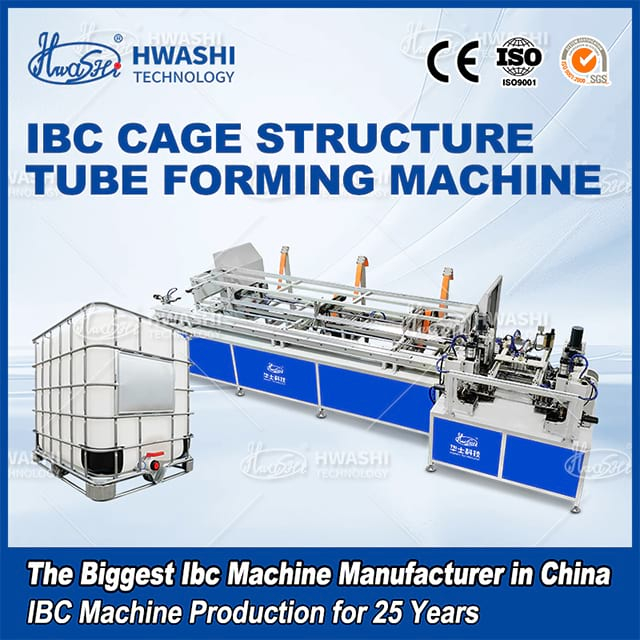

The IBC Cage Frame Tie Bar Forming Machine is a specialized, high-precision piece of industrial equipment engineered for the automated production of metal tie bars (reinforcing rods) used in Intermediate Bulk Container (IBC) cage frames. It is a critical component in the full IBC tank production line, responsible for transforming raw metal tubes or wires into precisely shaped, standardized tie bars that form the structural grid of 1000L IBC tote cages.

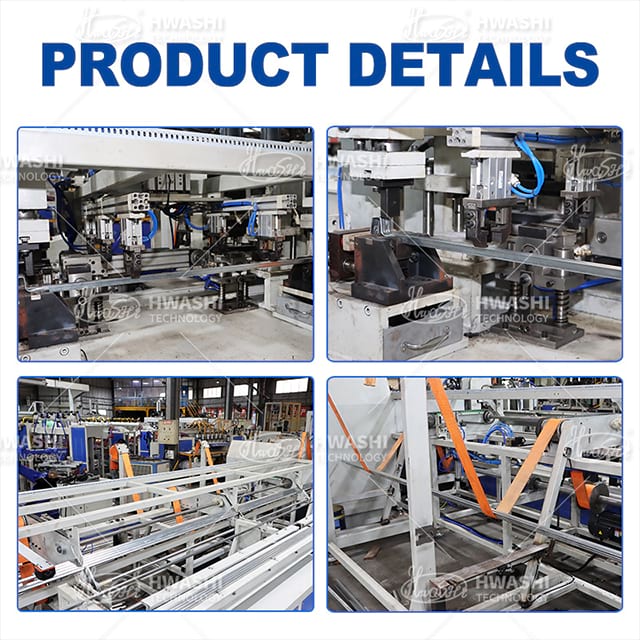

Working Principle & Main Structure
Automatic Feeding System
Equipped with a servo-driven feeding mechanism, it accurately transports raw materials (typically galvanized steel tubes, Ø16–22mm) into the processing station.
Features a dual-layer pre-feeding table design that enables continuous loading while the machine operates, maximizing uptime.
Hydraulic Forming & Shaping
Utilizes a high-pressure hydraulic system (6–8MPa) with a synchronized three-axis mechanism to perform pipe-end shrinking, pressing, bending, and profiling.
CNC-machined molds ensure consistent forming dimensions, with adjustable modules to accommodate different tube diameters and lengths.
Cutting & Punching Unit
Integrates a precision shearing or punching system to cut the formed bars to exact lengths and create mounting holes as required.
The punching process is controlled by PLC for accurate hole positioning and spacing.
PLC Control System
Full automation via a PLC + HMI (Human-Machine Interface) control system.
Operators can set parameters such as length, bending angle, and hole positions via the touchscreen, with one-click production startup.
Automatic Unloading
A robotic arm or conveyor system unloads finished tie bars, stacking them neatly for subsequent assembly.
Equipped with an advanced PLC control system and servo hydraulic drive, this machine achieves high forming precision and stable operation, with minimal dimensional errors that meet international industry standards. It features a user-friendly human-machine interface, simplifying operation and reducing training costs for operators.
The machine adopts a modular design, allowing easy maintenance, upgrades, and flexible adaptation to different specifications of tie bars by replacing mold blocks quickly. It integrates material feeding, bending, forming, and cutting functions into one seamless process, significantly improving production efficiency and reducing labor input—0 operator needed for daily operation. Only need one maintenance engineer to supervise several machines at the same time.
With energy-saving technology and a water cooling hydraulic system, it ensures low energy consumption and long service life, aligning with sustainable production trends. It is widely applicable to galvanized steel tubes and other common materials used in IBC cage frames, catering to the production needs of 1000L and other standard IBC products.
