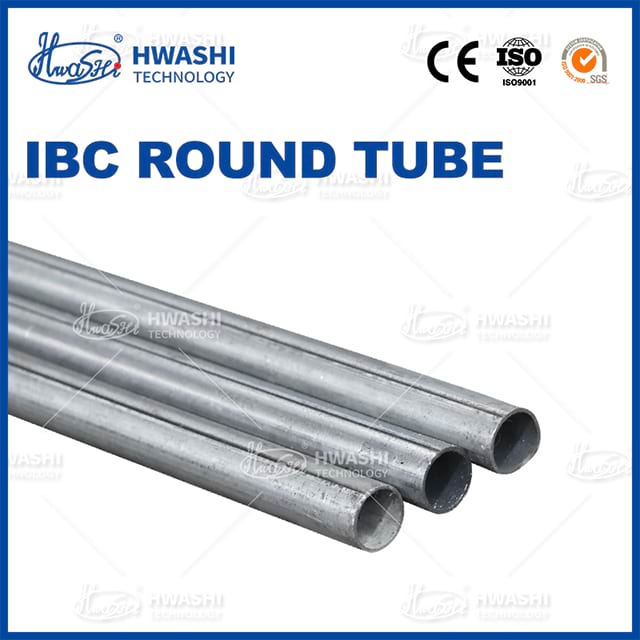

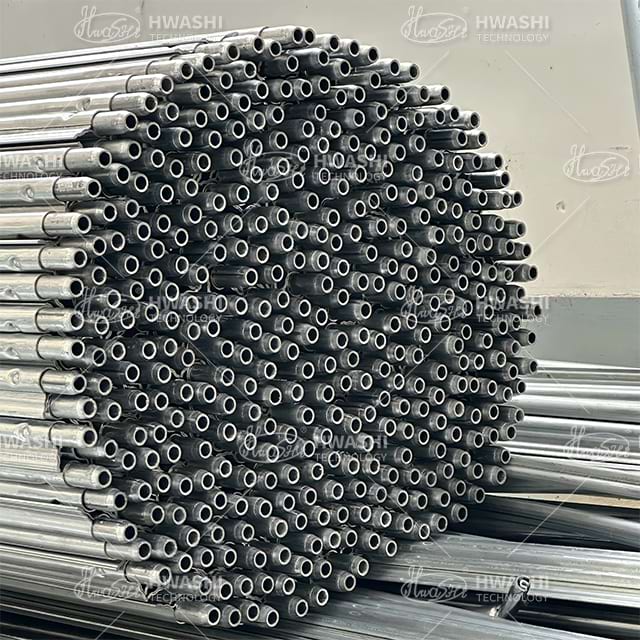

IBC Round Tube is a high-performance welded metal pipe specially designed and manufactured for constructing 1000L IBC (Intermediate Bulk Container) metal cage frames. It serves as the core structural profile for vertical supports, top/bottom surrounding beams, corner connectors, and reinforcing bars of IBC frames, providing stable load-bearing capacity, impact resistance, and stacking stability for the entire IBC assembly.
Main materials: hot-dip galvanized steel pipe, stainless steel (304/316L), and high-strength carbon steel
Production process: high-frequency welded, precision-sized, cut to fixed length, with surface anti-corrosion treatment
Surface finish: uniform galvanized coating for long-term rust prevention; optional passivation or polishing for food/pharmaceutical grades
High Structural Strength
Uniform wall thickness and consistent round profile deliver excellent tensile, bending, and compression resistance, preventing frame deformation during stacking, handling, and long-distance transportation.
Precision Dimensional Tolerance
Strictly controlled outer diameter, roundness, and straightness ensure easy bending, punching, welding, and clinching, with stable assembly accuracy for IBC frames.
Strong Process Compatibility
Easy to bend into standard 90° corners, punch mounting/connecting holes, and weld firmly; compatible with automated IBC frame production lines.
Corrosion Resistance & Durability
Galvanized or stainless steel construction withstands humid, chemical, and outdoor environments, extending the service life of IBC frames.
Lightweight & Cost-Effective
Hollow round structure reduces material consumption and overall frame weight while maintaining high rigidity, improving transport efficiency and lowering production costs.
Outer diameter: φ19mm, φ20mm, φ22mm, φ25mm, φ32mm
Wall thickness: 1.0mm, 1.2mm, 1.5mm
Length: custom-cut according to IBC frame design (commonly 1100mm–1200mm for vertical supports)
Tolerance: diameter ±0.1mm, length ±0.5mm
Fabrication of vertical columns, horizontal beams, and corner frames for standard 1000L IBC metal cages
Production of reinforcing rods, tie rods, and bottom support pipes for IBC frames
Suitable for IBC frames used in chemical, food, pharmaceutical, environmental, and logistics storage industries
Compatible with IBC frame processing equipment: bending machines, punching machines, welding machines, and clinching machines
Improves the overall strength and safety of IBC frames
Ensures consistent sizing for automated mass production
Resists rust and corrosion for long-term repeated use
Easy to process and assemble, reducing production defects
Meets international transport and storage standards for IBC containers
Common categories are as follows:

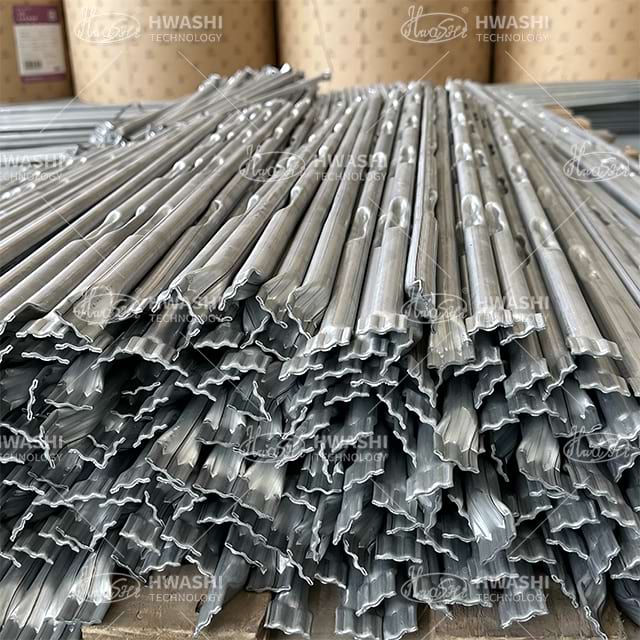

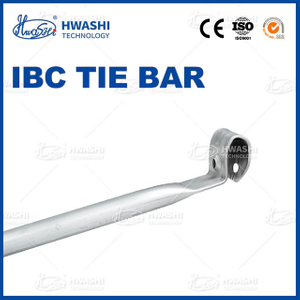

Steel tube components: horizontal pipes, vertical pipes, pallet pipes, tie bars, etc.
Steel pallet components: bottom plate, center bridge, IBC corner feet, IBC frame middle feet, label plate, tie bar brackets, etc.
These metal parts are specially designed to fit standard 275–330 gallon IBC containers. They are widely used in industrial, agricultural, food and pharmaceutical industries with strong versatility.
Adopting these metal parts helps enterprises optimize production processes, cut down waste, and fully meet relevant safety standards and regulatory requirements.
